Carl´s magic pump

L1 Group Pump
Version Carl Version Dieter

No.

description

acc.

material
. Single Parts L-0

1
.

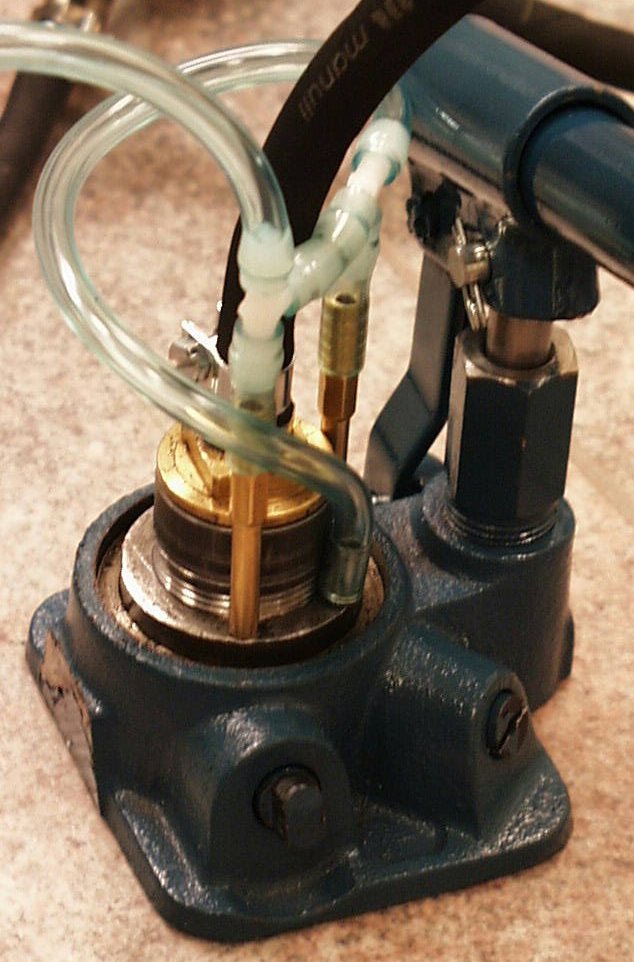

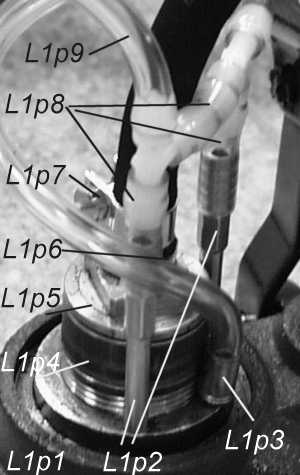

L1p1 Pump ...

1
Lower part of a workshop Hydraulic jack , 2000 kg.. As found cheap at any store. Mine was Taiwan made,(piston removed) Dieter purchased the same one in Germany 'Unitec'
L1p2 hose connector long

2
tubing to fit plastic hose and hydraulic jack. Pieces of brake – pipe will do. About 50mm long each, with thread M5 or M4 on one end.
L1p3 hose connector short

1
tubing to fit plastic hose and hydraulic jack. Pieces of brake – pipe will do. About 20mm long, with thread M5 on one end
For the Unitec-jack use 4mm pipe
L1p4 pressure sphere (cylinder)

1
depending on Hydraulic jack design, here is used the original one of the jack, shortened to app 30 mm and inner threaded.
L1p5 thread cap, reducing joint

1
28 mm dia. Brass end cap to suit inner cylinder. Found at heating- and tube-firm.
Dieter used a 3/4 inch water pipe connector with additional inner thread of 1/8 inch
L1p6 hose connector of hydraulic pressure hose

1
Joint to suit hydraulic rubber hose. Found at heating- and tube-firm. or compressed air fitting store (Legris)
L1p7 hose clamp

1
for hydraulic rubber hose 11 mm diameter
L1p8 T-joint

2
for 5mm plastic hose (or 4mm if applicable)
or take one cross joint as Dieter did.
L1p9 plastic hose (suck pipe)

1
5 mm inner diam. clear plastic hose, leads to tank
(or 4mm if applicable)
