MG Cars | MGF - MG TF | Engine & Mountings | Engine 1800 | Cylinder Head, Camshaft - Except VVC. MPI up to TF135

Parts
P/N, description, qty needed. from VIN to VIN
GBP
1 LGC10204 - Camshaft assembly-engine inlet
- MPi only, -
MGF & MG TF Engine (1800)
Rover 400 Series (May 1995 on),
Rover 45 & MG ZS Series (Jan 2000 on)
Metro 3 & 5 Door (Apr 90 VIN XP100001 on)
NLA

until
18K4FJ31 196826
+
18K4FJ32 197073
(1995?)
128
1 LGC105990 - Camshaft assembly - engine inlet
-
for engines with distributor ?		 18K4FJ31 196827
+
18K4FJ32 197074
(1995?)
18K4FJ31 694354
(1998 ?)
+
18K4FJ32 692084
(1998 ?)
268
1 LGC107550 - Camshaft assembly - engine inlet
 18K4FJ31 694355
+
18K4FJ32 692085
(1998?)

284
1 LGC107550 Superceeded by LGC106960 Camshaft assembly-engine

(MG TF 135 performance cam shaft taken from R75+MGZT Turbo ???)
BUT see also LGC000280 ???		 MGTF 135
139
1 p/n stamped on the performance cams of a TF 135 engine LGC003000 ????????
2 NJJ10001 - Bush-drive spindle distributor
- MPi -
1 of
(EDC3 Engines don't have a distributor)
(used with LGC106960 MGTF135)		 MGTF 135 18K4FJ31 196826
+
18K4FJ32 197073
(1995?)
25
3 or 5 PA112150 - Pin-roll
- MPi -
1 of
(EDC3 Engines don't have a distributor)
(used with LGC106960 MGTF135) 		MGTF 135 dito
(1995)
0.35
4 LGC10304 - Camshaft assembly-engine exhaust
- MPi -
--> LGC10205 + PAA112150
   18K4FJ31 196826
+
18K4FJ32 197073
(1995?)
408
4 LGC106000 - Camshaft assembly-engine exhaust (high performance)
-
- > LGC106010 + PAA112150 		18K4FJ31 196827
+
18K4FJ32 197074
(1995?)
130
4 LGC107540 - Camshaft assembly-engine exhaust
-->LGC106950
18K4FJ31 694355
+
18K4FJ32 692085
(1998?) 		1D
(MY2001)
138
4 LGC106950 - Camshaft assembly-engine
inlet/exhaust ??
   2D600100
(2002)
351
4 LGC000280 - Camshaft assembly-engine
inlet/exhaust ??
for 135PS ??		 2D600100
(2002)
69
4 p/n stamped on the performance cams of a TF 135 engine LGC003000
5 or 3 PA112150 - Pin-roll
-

6 LUC10012 - Seal-camshaft oil
- 		  18K4FJ31 694354
+
18K4FJ32 692084
(1998)

6 LUC100290 - Seal-camshaft oil - Black, front
2 of		 18K4FJ31 694355
+
18K4FJ32 692085
(1998)

3.5
6 LUC100220 - Seal-camshaft oil - Red, rear
2 of		 18K4FJ31 694355
+
18K4FJ32 692085
(1998)
3
7 LVB100760 - Gasket-cylinder head
superceeded by
LVB000320
superceeded by
LVB000320SLP 		  YD527783
(March 2001)

7 LVB000320 - Gasket-cylinder head
superceeded by
LVB000320SLP 		YD527784
(March 2000)
27,40
7 LVB000320SLP - Gasket-cylinder head
Service Part
- ELRING 167.410
superceeded by
ZUA000080 + oil ladder
27,40
7 GUG702576HG Land Rover
uprated BW750 Payen gasket with elastomere stripes
red coloured, changed to blue coloured in 2012
SB2198 federal Mogul
7

February, 1. 2005
Land Rover introduced a new design head gasket and oil rail to improve the engine and decrease head gasket failures.

Land Rover p/n
LVB500190 approx €44 + VAT (~£29+VAT)
New oil ladder LCN000140L approx €52 + VAT (~£34+VAT)
- REINZ 61-34835-10
- ELRING 489.860


7 new in 2008

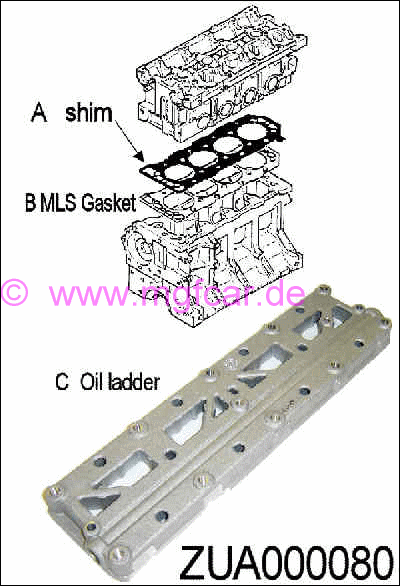

ZUA000080 - Gasket-cylinder head kit
(B) MLS gasket with (A) black shim and (C) oil ladder
(VVC needs another additional gasket)		 March 2008   130
7 new in 2009
ZUA000530 Set-cylinder head gasket - Includes Multi Layer Gasket and clamping oil rail, and head bolts. (no extra shim
Made by SAIC .....
(VVC needs another additional gasket)		 March 2008   ???
8 WAM2293 - Bolt-cylinder head fixing
10 of stretch bolt
5.7
9 LDR101980 - Cover-camshaft carrier
- 		  18K4FJ31 590354
+
18K4FJ32 568017
(1997?)

9 LDR103250 - Cover-camshaft carrier
Manual - 		18K4FJ31 590355
18K4FJ32 568018
(1997?)

65
9 LDR103980 - Cover-camshaft carrier
Automatic -

10 LVP100260 - Gasket-camshaft cover
Manual -

10 LVP100630 - Gasket-camshaft cover
REINZ
71-34837-00
12
11 FB106067 - Bolt-flanged head
15 of

11 FB106065 - Bolt-flanged head - M6 x 30
15 of
0.22
12 LQC100270 - Cap-oil filler - Yellow
-
3
13 LUD100040 - Seal-engine oil filler cap -
43mm, outside diameter
-
2.5
14 LDR102800 - Cover-spark plug
- -
4.5
15 LDL100210 - Plate-camshaft cover blanking
-
1.1
16 FS108165 - Screw-flanged head - M8 x 16
2 of
0.4
17 LDF106030 - Cylinder head assembly-engine
-

18K4FJ31 694354 +
18K4FJ32 692084
(1998?)

1120
17 LDF108500 - Cylinder head assembly-engine
(with cam wheels for auto tensioning)

18K4FJ31 694355
+
18K4FJ32 692085
(04/1998?)

18K4FJ31 153992
+
18K4FJ32 147262
(11/1998?)
1132
17 LDF109380 - Cylinder head assembly-engine
(with cam wheels for auto tensioning)
- with valves
 18K4FJ31 153993
+
18K4FJ32 147263
(11/1998?)

695
18 LDF104850 - Cylinder head-engine - less studs
   18K4FJ31 694354
+
18K4FJ32 692084
(1998?)

18 LDF109160 - Cylinder head-engine - less valves
(wir´th cam wheels for manual tensioning)
- 		18K4FJ31 694355
+
18K4FJ32 692085
 18K4FJ31 153992
+
18K4FJ32 147262

18 LDF109390 - Cylinder head-engine - less valves
- 		18K4FJ31 153993
+
18K4FJ32 147263

446
19 LGJ10034 - Guide-cylinder head valve - Standard, plain (manual tensioning)
16 of		 18K4FJ31 694355
+
18K4FJ32 692085		 18K4FJ31 153992
+
18K4FJ32 147262
17
19 LGJ101050 - Guide-cylinder head valve - Standard, plain (auto tensioning)
16 of

18K4FJ31 153993
+



20 LGJ10033 - Guide-cylinder head valve - grooved and stepped, salvage (manual tensioning)
16 of		 18K4FJ31 694355
+
18K4FJ32 692085		 18K4FJ31 153992
+
18K4FJ32 147262

20 LGJ101060 - Guide-cylinder head valve - grooved and stepped, salvage (auto tensioning)
16 of		 18K4FJ31 153993
+
18K4FJ32 147263

6
21 LGK101160 - Insert-inlet valve seat-cylinder head - stepped chamfer (manual tensioning)
16 of		 18K4FJ31 694355
+
18K4FJ32 692085
2.5
23 LYU100290 - Dowel-ring
2 of
0.5
24 LDN10018 - Bolt-flanged head - M6 x 30
26 of
1
25 LGH10029 - Valve-cylinder head inlet
8 of
18
26 LGH101190 - Valve-cylinder head exhaust
8 of
25
27 LUB100350 - Seal-cylinder head valve stem oil
16 of
2
28 LGL10008 - Spring-cylinder head valve
16 of
2.7
29 UAM3797 - Cap-cylinder head valve spring
16 of
1.2
29 LJC000030 - Cap-cylinder head valve spring
16 of
1.1
30 LGN10004 - Collet-cylinder head valve
32 of
0.35
31 LGR100100 - Tappet-engine valve hydraulic
16 of
superceeded by
LGR000050
14
32 TE108065 - Stud inlet manifold
3 of
superceeded by
TE108065M
3.3
33 LYR10031 - Stud exhaust manifold
5 of
superceeded by
LYR000020
LYR000021


33 LYR000020- Stud exhaust manifold
5 of
superceeded by
LYR000021

33 LYR000021 - Stud exhaust manifold
5 of
0.8
904 LDR104510 - Cover assembly-camshaft carrier
superceeded by
LDR104511
904 LDR104511 - Cover assembly-camshaft carrier
automatic CVT
60,66
908 LYU000010 - Dowel
- VVC -
2 of
Replaces former used plastic dowels		 YD527784
(March 2000)
0,59

cylinder head mpi
notice: parts prices are historic. Edition app. 2003. Today you pay about double and more for some of the rare parts
