| Car
type and location |
Type
of inner damper cartridge
with valves
|
Diameter
metal cover |
D1 |
D2 |
D3 |
H1 |
H2 |
H3 |
H4 |
axle
load |
RNK100070
MGF front
- flow bypass |
row
3
|
75,5
mm |
26 mm |
34 mm |
60
mm |
4 mm |
37
mm |
43 mm |
56
mm |
app 480
kg |
RPJ100020
MGF rear |
row
2
|
69
mm |
26 mm |
33 mm |
59
mm |
4 mm |
24
mm |
32
mm |
67
mm |
app 720
kg |
| |
|
|
|
|
|
|
|
|
|
|
|
RNK000010
MGF Trophy front
|
row
2
|
76 mm |
26 mm |
33 mm |
59,8 mm |
4 mm |
37 mm |
43 mm |
49
mm |
app 480
kg |
RPJ000010
MGF Trophy rear
- less bypass
- one rebound pass |
row
1
|
69
mm |
26 mm |
33 mm |
58 mm |
4 mm |
22
mm |
29 mm |
60
mm |
app 720
kg |
| |
|
|
|
|
|
|
|
|
|
|
RNK10002
Metro front (1990 on)
- flow bypass |
row
3
|
67
mm |
25 mm |
33 mm |
52
mm |
6 mm |
20
mm |
28 mm |
68 mm |
420 ? kg |
NAM9534
Metro rear
(LHD & 185 tyres)
|
row
2
|
68 mm
tx Ariel /NAS Sport :) |
21.9mm |
33 mm |
59 mm |
4 mm |
21.8 mm |
28 mm |
49.5mm |
389 ? kg |
NAM9533
Metro rear
for 155 tyres |
|
|
|
|
|
|
|
|
|
|
NAM4763
(MK2 Metro front) |
|
|
|
|
|
|
|
|
|
|
|
Austin Ambassador
31G 5306
FAM222
FAM2078
FAM4640
ALLEGRO R/H/R
|
|
|
|
|
|
|
|
|
|
|

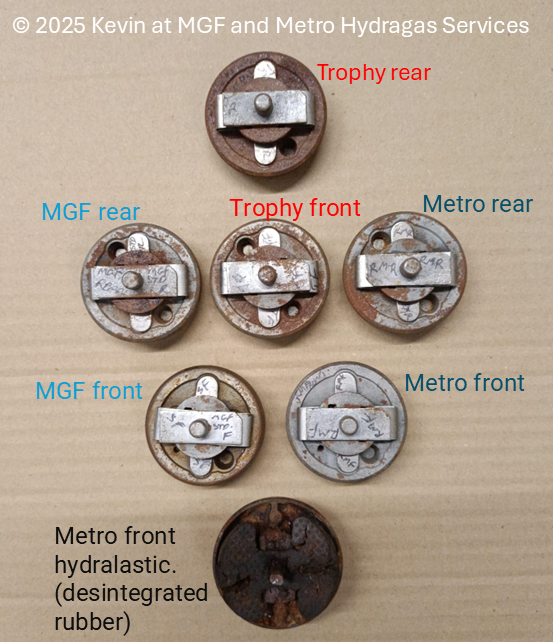

The different
damper valve cartridges .
MGF Trophy IS different to MGF Standard !
AND the front is different to rear in ALL cases.
|
 |
|

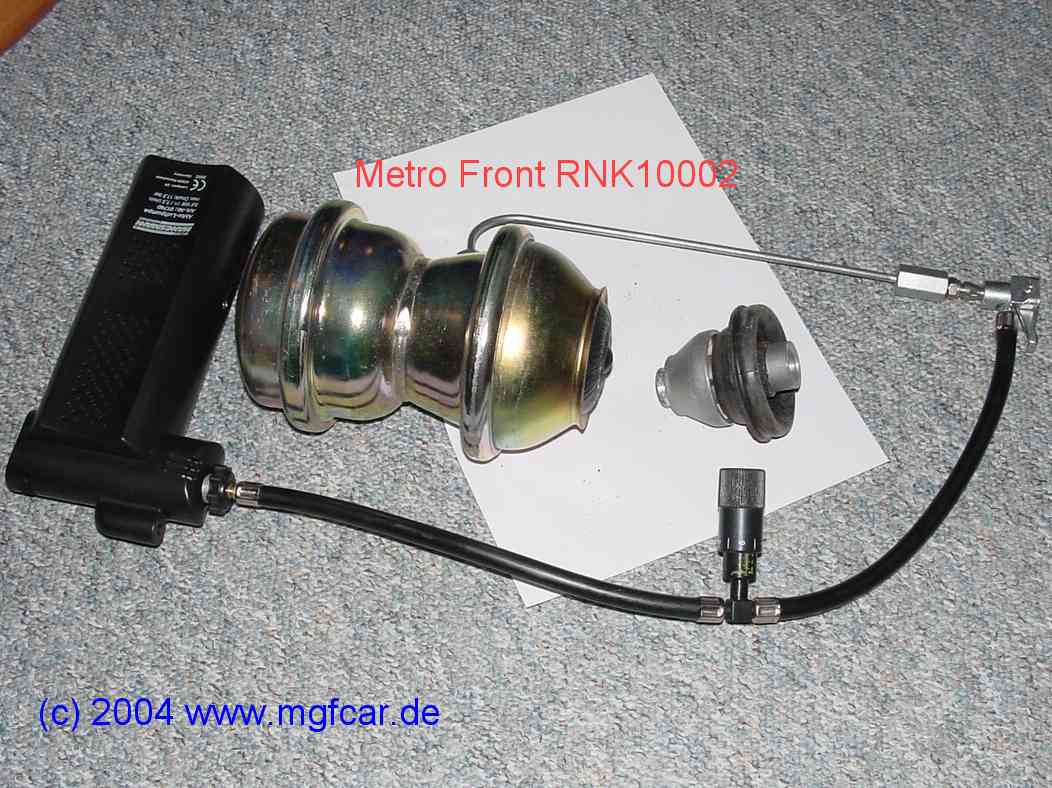

The cone easy pops
out with air pressure to the lower sphere connection.
(Battery compressor
11.5 Bar used and the interconnection joint, MGR tool 18G1743
|

|

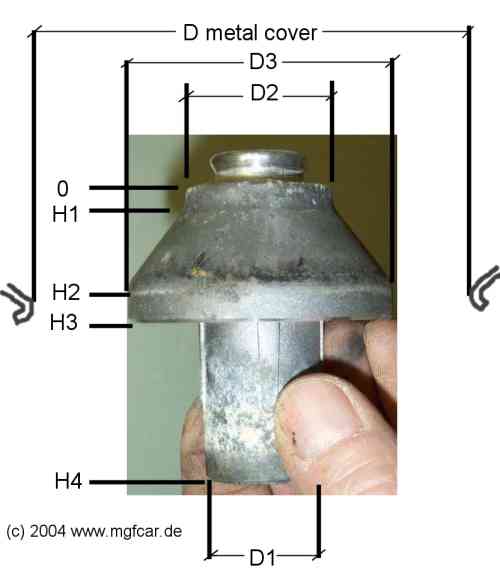

measured
locations .
Accuracy of above measures may be +/- 0.5mm |
|

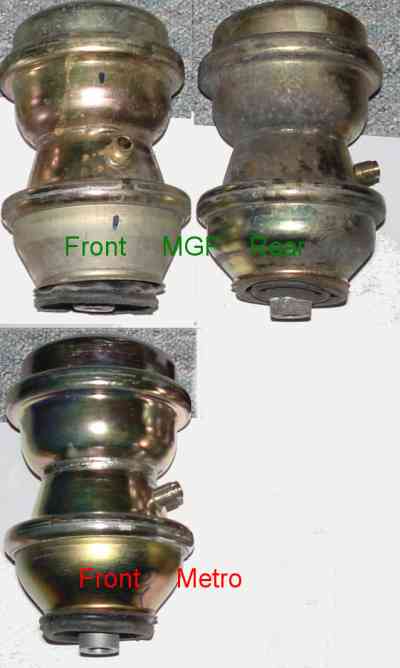

See the different shape
of the metal cover (D metal cover)
Looks like the more load, the smaller is the lower diameter.
The ally piston shape reffers as well to the load.
Low weight on the axle means less diameter, but longer height.
All pistons nearly have the same lenghth overall. |
 |
| Front Metro and front MGF sheet
metal shape is nearly equal form, but the MGF open diameter is much wider. |
 |
| Video channel of Kevin
about unit derust and pressure tests |
https://www.youtube.com/@mgfhydragas360 |
