early 96 made Hardtop |
J3 on one frame end |
on the other side 4520 |
(red) hose seal, (green) rubber joint |
|
|
|
|
lower seal end |
rubber foam location
?? is that right ? |
MKI side catch |
MKII side catch
Hardtop rear side catch (adjustable)
DXW100200PMA |
![[Click to enlarge image]](dcp_2329_t.jpg) |
![[Click to enlarge image]](dk_dcp_0350_t.jpg) |
![[Click to enlarge image]](dcp_4454_t.jpg) |
|
new catch |
check whether yours has already brackets |
the trouble of fitment when swaping the old HT to
newer MGF/TF |
gap between seal and glass from different window shape |
![[Click to enlarge image]](dcp_4514_mod_t.jpg) |
![[Click to enlarge image]](dcp_4483_t.jpg) |
![[Click to enlarge image]](dcp_4505_t.jpg) |
![[Click to enlarge image]](dcp_4499_t.jpg) |
yellow arrows show gap loations |
the kit to convert old to new |
sill removed |
old and new |
![[Click to enlarge image]](dcp_4487_t.jpg) |
![[Click to enlarge image]](dcp_4507_t.jpg) |
![[Click to enlarge image]](dcp_4508_t.jpg) |
![[Click to enlarge image]](dcp_4506_t.jpg) |
plastic rivets |
pull off the rivet |
pull off the rivet |
removed seals |
![[Click to enlarge image]](dcp_4484_t.jpg) |
![[Click to enlarge image]](dcp_4494_t.jpg) |
![[Click to enlarge image]](dcp_4491_t.jpg) |
![[Click to enlarge image]](dcp_4488_t.jpg) |
clean the end from adhesive |
distance washers under one of the bracket |
the upper |
the upper |
![[Click to enlarge image]](dcp_4492_t.jpg) |
![[Click to enlarge image]](dcp_4496_t.jpg) |
![[Click to enlarge image]](dcp_4497_t.jpg) |
![[Click to enlarge image]](dcp_4495_t.jpg) |
where it gets |
pre assembled |
pre assembled |
pre assembled |
![[Click to enlarge image]](dcp_4500_t.jpg) |
![[Click to enlarge image]](dcp_4501_t.jpg) |
![[Click to enlarge image]](dcp_4502_t.jpg) |
![[Click to enlarge image]](dcp_4503_t.jpg) |
push in |
press on the studs under the seal |
one of the brackets |
see how it gets bent outwards |
![[Click to enlarge image]](dcp_4504_t.jpg) |
![[Click to enlarge image]](dcp_4509_t.jpg) |
![[Click to enlarge image]](dcp_4513_t.jpg) |
![[Click to enlarge image]](dcp_4511_t.jpg) |
bent seal will seal correct |
lower end |
rear lower side |
A-Frame end |
![[Click to enlarge image]](dcp_1675_t.jpg) |
![[Click to enlarge image]](dcp_1674_t.jpg) |
![[Click to enlarge image]](dcp_1684_a_t.jpg) |
![[Click to enlarge image]](dcp_1681_t.jpg) |
side fitment, big gap :) |
small gap :( |
adjust the old catch |
with a screw driver |
![[Click to enlarge image]](dcp_1690_t.jpg) |
![[Click to enlarge image]](dcp_1686_t.jpg) |
![[Click to enlarge image]](dcp_1697_t.jpg) |
![[Click to enlarge image]](dcp_1696_t.jpg) |
adjusting seen from the side |
gap and old catch |
looks good |
Looks to tight !! No solution, but swap in the new
clamp with support at any time |
![[Click to enlarge image]](dcp_7035_t.jpg) |
![[Click to enlarge image]](dcp_7036_t.jpg) |
![[Click to enlarge image]](dcp_7037_t.jpg) |
![[Click to enlarge image]](dcp_7038_t.jpg) |
ready |
now sealed |
DCP_7037 |
DCP_7038 |
Update seals and conversion 2003
(Bruce Caldwell) |
 |
 |
-- cut from Bruce email 11/2003 ----
So, as I understand, the modification shown in your website requires new
type seals AND a special set of brackets which are rivetted to the hardtop.
The brackets press against the seals to push them against the glass.

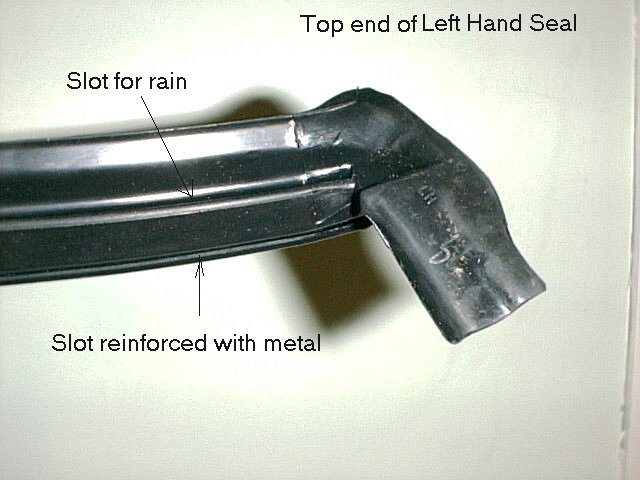

The seals I have purchased have 2 metal pieces inside the seal just
like the rubber seal around the bottom of the door opening. It looks
as if it clips onto the plastic(fibreglass?) edge where the original
seal was. Is this the same as the new seal in your pictures? I have
attached 2 photos to show the seal I have purchased.
..
...
Took the plunge two days ago and fitted one of the new side window seals
to my 96 HT. It took longer to remove the old seal than to fit the new
one. Fitting was very easy, no rivetts, and at the moment I am testing
it in bad weather. I haven't even glued the ends of the seal yet and
so far it all seems to be OK. It is certainly a great improvement on
the original seal and the glass presses onto the rubber all round. I
await some dry weather to fit the seal on the other side and glue the
ends in properly. |
|
|
|
|
