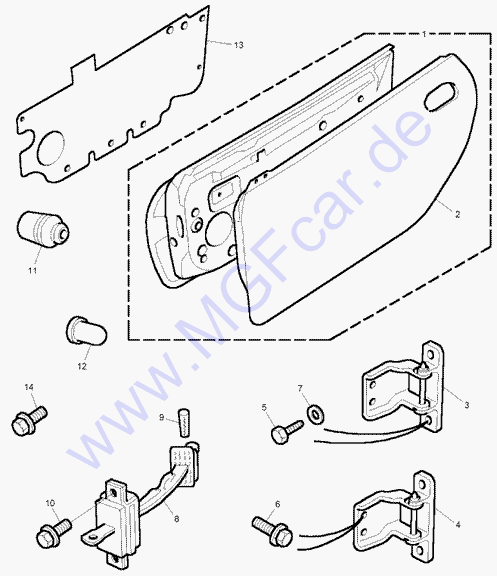

Parts |
 |
P/N, description, qty needed. |
from |
to |
GBP
|
| 1 |
BDA460020 - Door assembly-front - RH
superceeded by
BDA4160160
superceeded by
BDA4160120
|
|
XD511058 |
225,70 |
| 1 |
BDA460030 - Door assembly-front - LH
superceeded by
BDA4160170
superceeded by
BDA4160130
|
|
XD511058 |
225,70 |
| 1 |
BDA460160 - Door assembly-front - RH
superceeded by
BDA4160120
|
XD511059 |
|
220,62 |
| 1 |
BDA460170 - Door assembly-front - LH
superceeded by
BDA4160130
|
XD511059 |
|
220,62 |
| 1 |
BDA460120 - Door assembly-front - RH
|
XD511059 |
|
331,95 |
| 1 |
BDA460130 - Door assembly-front - LH
|
XD511059 |
|
331,95 |
| 2 |
BDA460040 - Door-outer front - RH
superceeded by
BDA460041
|
|
2D609537 |
105,12 |
| 2 |
BDA460041 - Door-outer front - RH
|
2D609538 |
|
98,38 |
| 2 |
BDA460050 - Door-outer front - LH
superceeded by
BDA460051
|
|
2D609537 |
101,36 |
| 2 |
BDA460051 - Door-outer front - LH |
2D609538 |
|
98,38 |
| 3 |
BDB460020 - Hinge assembly-front door
upper - RH
|
|
|
19,44 |
| 3 |
BDB460030 - Hinge assembly-front door
upper - LH
|
|
|
19,44 |
| 4 |
BDB460040 - Hinge assembly-front door
lower - RH
|
|
|
19,44 |
| 4 |
BDB460050 - Hinge assembly-front door
lower - LH
|
|
|
19,44 |
| 5 |
AYP10002 - Screw-dog point
8 of
|
|
|
0,73 |
| 6 |
AYP10002 - Screw-dog point
12 of
|
|
|
0,73 |
| 7 |
AYF10002 - Washer-plain-thick
20 of
|
|
|
0,21 |
| 8 |
BFH38004 - Checker assembly
-front door
2 of
|
|
|
10,92 |
| 9 |
BDM10001 - Pin
-door check arm
2 of
superceeded by BDM100050L
|
|
WD035071 |
|
| 9 |
BDM100050L - Pin
-door check arm
2 of
|
WD035072 |
|
0,68 |
| 9 |
BDM100050A - Pin
-door check arm
2 of
|
WD035072 |
|
0,68 |
| 10 |
EYP10063 - Screw
2 of
|
|
|
0,38 |
| 11 |
FVG100020 - Stop
-door release assembly bump
4 of
|
|
|
1,58 |
| 12 |
AJU1136 - Stud
4 of
|
|
|
0,49 |
| 13 |
EJD101440 - Shedder-front door water
- LH
|
|
|
5,39 |
| 13 |
EJD101450 - Shedder-front door water
- RH
|
|
|
5,39 |
| 14 |
CLP5442 - Screw
4 of
|
|
|
0,43 |
|
|
|
 |
