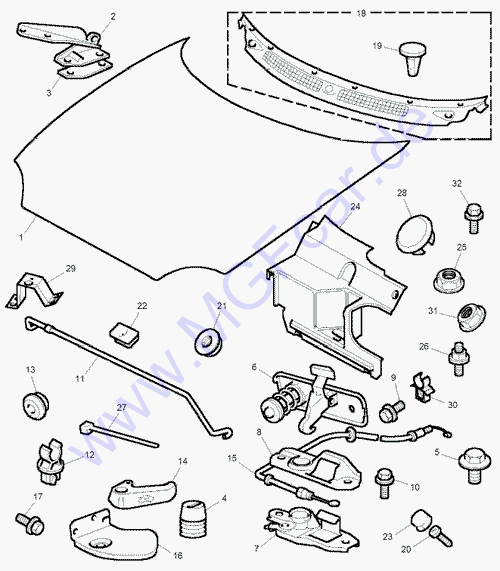

Parts |
 |
P/N, description, qty needed. |
from |
to |
GBP |
| 1 |
BKA460070 - Bonnet assembly
|
|
|
286,96 |
| 2 |
BKB460050 - Hinge assembly-bonnet
- LH
2 of
|
|
|
16,24 |
| 2 |
BKB460040 - Hinge assembly-bonnet
- RH
2 of
|
|
|
16,24 |
| 3 |
BKC460010 - Shim-bonnet hinge
2 of
|
|
|
0,84 |
| 4 |
CJM10004 - Buffer-bonnet
2 of
superceeded by
CJM000060
|
|
|
1,33 |
| 5 |
DEP1198 - Screw-flanged head
M6 x 14
8 of
|
|
|
0,48 |
| 6 |
FPB100110 - Striker&safety catch
assembly-bonnet
|
|
|
8,98 |
| 7 |
FPS10007 - Latch assembly-bonnet
|
|
|
13,37 |
| 8 |
FPT10005 - Plate-bonnet latch top
|
|
|
2,66 |
| 9 |
FS108161M - Screw-flanged head - bonnet
striker and safety catch
2 of
|
|
|
0,37 |
| 10 |
FS108165 - Screw-flanged head -
M8 x 16 bonnet striker and safety catch
2 of
|
|
|
0,39 |
| 11 |
BKD100141 - Stay-bonnet
|
|
|
6,93 |
| 12 |
BKG38001 - Clip-bonnet stay
|
|
|
1,69 |
| 13 |
AFU4001 - Grommet
|
|
|
2,26 |
| 14 |
FSC100130PMA - Lever-bonnet release
assembly
|
|
|
2,67 |
| 15 |
FSE100310 - Cable assembly-bonnet release
assembly
superceeded by
FSE100311
FSE000160
|
|
AD021479 |
9,79 |
| 15 |
FSE100311 - Cable assembly-bonnet release
assembly
superceeded by
FSE000160
|
AD021480 |
|
12,14 |
| 16 |
FSF100060 - Bracket assembly-bonnet
release assembly
|
|
|
8,88 |
| 17 |
FS106125 - Screw-flanged head
- M6 x 12
2 of
|
|
|
0,39 |
| 17 |
FS108305 - Screw-flanged head
- M8 x 30
|
|
|
0,39 |
| 18 |
ECG100161 - Finisher assembly - scuttle
panel
|
|
|
31,42 |
| 19 |
EYC10052 - Clip
6 of
|
|
|
1,15 |
| 20 |
EYP100900 - Screw
-self tapping
6 of
|
|
|
0,38 |
| 21 |
EYH10017 - Nut-lokut - scuttle panel
2 of
|
|
|
0,39 |
| 22 |
DBP6376 - Grommet screw-scuttle panel
superceeded by
DYH000210
|
|
|
1,51 |
| 22 |
DYH000210 - Grommet screw M4 scuttle
panel
4 of
|
|
|
0,49 |
| 23 |
ECQ10003 - Cap-windscreen finisher
screw head
6 of
Honda 74219-SK3-E00
|
|
|
1,00 |
| 24 |
ECB100100 - Cover-underbonnet space
- RHD
- manual |
|
|
26,04 |
| 24 |
ECB100260 - Cover-underbonnet space
- RHD
- Automatic - |
|
|
24,50 |
| 24 |
ECB100110 - Cover-underbonnet space
- LHD |
|
3D612108 |
25,36 |
| 24 |
ECB100111 - Cover-underbonnet space
- LHD |
3D612109 |
|
37,87 |
| 24.1 |
DCP4229 - Scrivet
fixture for Cover
superceeded by
KYC100020
Schraubniet
use Sciffy 113108059902
or Ettinger 72.11.880 |
|
|
|
| 25 |
CYH10001 - Nut-plastic
|
|
|
0,45 |
| 26 |
DBP5563 - Clip
|
|
|
1,28 |
| 27 |
BMK1900 - Tie-cable
|
|
|
0,47 |
| 28 |
EYB100150 - Plug-blanking
|
|
|
1,05 |
| 29 |
ABU460190 - Bracket-under bonnet lamp
switch mounting
|
|
|
8,81 |
| 30 |
DJP6400 - Clip-cable
2 of
|
|
|
0,41 |
| 31 |
FN106047 - Nut-flange
- M6
- bonnet strut-bonnet platform
2 of
|
|
|
0,35 |
| 32 |
FYG10007 - Bolt-washer - M6 x 10 -
bonnet strut-bonnet platform
2 of
|
|
|
0,24 |
|
|
|
 |
