P/N, description, qty needed. |
from |
to |
GBP |
| 1 |

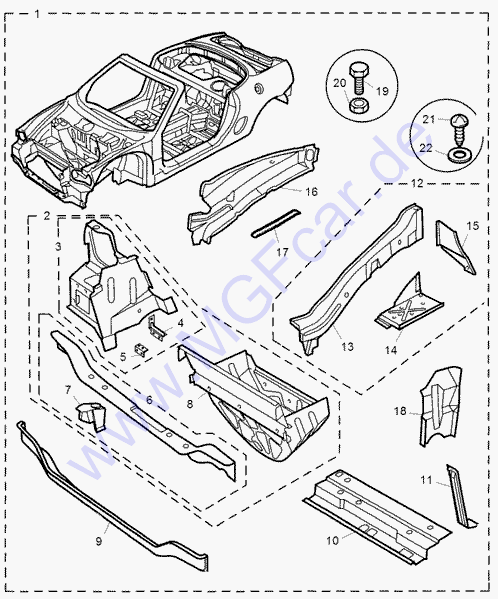

AAC460011 - Body
superceded by
AAC460012
|
2D600101 |
|
3879,19 |
| 1 |
AAC460012 - Body
|
LE500 |
|
3995,57 |
| 2 |
ABB460050 - Bulkhead front assembly
|
|
|
425,40 |
| 3 |
ABH460111 - Headlamp mounting assembly
- LH
|
|
|
47,68 |
| 3 |
ABH460101 - Headlamp mounting assembly
- RH
|
|
|
47,68 |
| 4 |

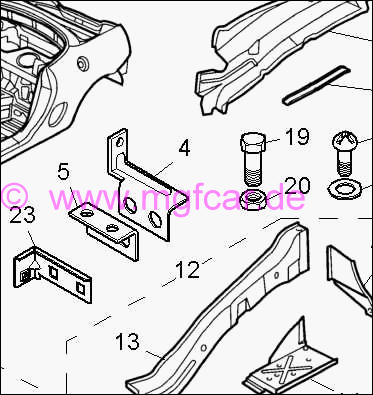

ABU460560 - Bracket Assembly-Headlamp
2 of
|
|
|
4,89 |
| 4 |
ABU460570 - Bracket Assembly-Headlamp
2 of
|
|
|
4,89 |
| 5 |
ABU460610 - Carrier-Headlamp - LH
|
|
|
4,29 |
| 5 |
ABU460600 - Carrier-Headlamp - RH
|
|
|
4,29 |
| 6 |
ABU460330 - Bracket assembly-front
sidemember
|
|
|
21,14 |
| 7 |
ABU460170 - Bracket/weld nut assembly-sidemember
sub frame front - LH
|
|
|
9,15 |
| 7 |
ABU460160 - Bracket/weld nut assembly-sidemember
sub frame front - RH
|
|
|
9,15 |
| 8 |
ABB460070 - Bulkhead assembly-spare
wheel front
|
|
|
63,38 |
| 9 |
ABC460100 - Crossmember assembly-lower
|
|
|
41,85 |
| 10 |
ABG460100 - Platform & weld nut
assembly-bonnet locking
|
|
|
55,91 |
| 11 |
ABJ460040 - Strut assembly-bonnet locking
platform
|
|
|
7,46 |
| 12 |
ABE460210 - Sidemember assembly-front
- LH
|
|
|
134,05 |
| 12 |
ABE460200 - Sidemember assembly-front
- RH
|
|
|
134,65 |
| 13 |
ABE460171 - Sidemember-front - LH
|
|
|
68,77 |
| 13 |
ABE460160 - Sidemember-front - RH
|
|
|
23,12 |
| 14 |
ABG460050 - Platform assembly-spare
wheel - LH
|
|
|
41,51 |
| 14 |
ABG460080 - Platform assembly-spare
wheel - RH
|
|
|
36,23 |
| 15 |
ABX460030 - Extension-lower front Suspension
reinforcement - LH
|
|
|
8,26 |
| 15 |
ABX460020 - Extension-lower front Suspension
reinforcement - RH
|
|
|
8,26 |
| 16 |
ABD460050 - Valance assembly - LH
|
|
|
116,32 |
| 16 |
ABD460040 - Valance assembly - RH
|
|
|
116,32 |
| 17 |
ABJ460030 - Strut-spare wheel to dash
|
|
|
6,73 |
| 18 |
AHN460031 - Closing-floor longitudinal
- LH
|
|
|
8,98 |
| 18 |
AHN460021 - Closing-floor longitudinal
- RH
|
|
|
8,98 |
| 19 |
FS106127 - Screw-flanged head
- M6 x 12
4 of
|
|
|
0,38 |
| 20 |
FN106047 - Nut-flange - M6
2 of
|
|
|
0,36 |
| 21 |
SH106161 - Screw
- M6 x 16
4 of
|
|
|
0,86 |
| 22 |
WA106041 - Washer-plain
4 of
|
|
|
0,38 |
| 23 |
ABU460520 - Bracket assembly headlamp
outer RH |
|
|
5,86 |
| 23 |
ABU460530 - Bracket assembly headlamp
outer LH |
|
|
5,86 |
