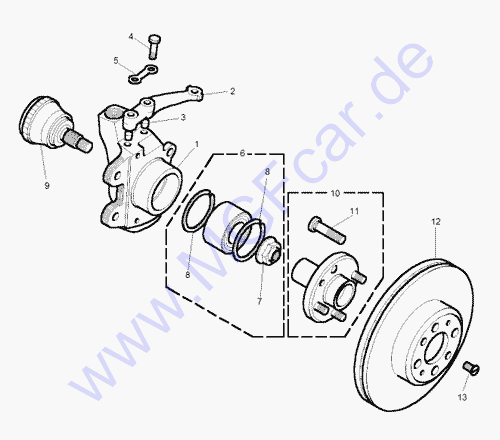

P/N, description, qty needed. |
from |
to |
GBP |
| 1 |
RFB000190 - Hub front Suspension -
LH
Except: Anti Lock Brakes
|
|
|
49,19 |
| 1 |
RFB100130 - Hub front Suspension -
LH
Anti Lock Brakes
superceeded by
RFB000210
|
|
|
|
| 1 |
RFB000180 - Hub front Suspension -
RH
Except: Anti Lock Brakes
|
|
|
49,19 |
| 1 |
RFB100120 - Hub front Suspension -
RH
Anti Lock Brakes
superceeded by
RFB000200
|
|
|
|
| 2 |
QJF100110 - Lever-steering swivel hub
- LH
|
Anti Lock Brakes'
YD512342
Except: Anti Lock Brakes
YD512444 |
|
33,83 |
| 2 |
QJF100210 - Lever-steering swivel hub
- LH
|
Anti Lock Brakes
Except: Anti Lock Brakes |
YD512343
YD512444 |
21,21 |
| 2 |
QJF100100 - Lever-steering swivel hub
- RH
|
Anti Lock Brakes'
YD512342
Except: Anti Lock Brakes
YD512444 |
|
33,83 |
| 2 |
QJF100200 - Lever-steering swivel hub
- RH
superceeded by
QJF000040
|
Anti Lock Brakes
Except: Anti Lock Brakes
|
YD512343
YD512444 |
21,21 |
| 3 |
FAM6924 - Dowel
|
|
|
0,98 |
| 4 |
BX110095M - Screw
superceeded by
BX110095MA
|
|
|
|
| 4 |
BX110095MA - Screw
|
|
|
0,84 |
| 5 |
WB112081 - Washer
|
|
|
0,22 |
| 6/8 |
RFM000050 - Kit-hub bearing - front
(rear)
- QH QWB661
- Lockheed BK405
- Unipart GHK1366
|
|
|
46,23 |
| 7 |
EJP7738 - Nut-stake - R/H thread
front/rear suspension hub
|
|
|
1,36 |
| 9 |
RFG100090 - Axle-stub-hub front Suspension
- Except: Anti Lock Brakes
|
|
|
68,42 |
| 9 |
RFG100070 - Axle-stub-hub front Suspension
Anti Lock Brakes
|
|
|
68,42 |
| 10 |
RUB000150 - Flange assembly-drive
|
|
2D600100 |
66,73 |
| 10 |
NAM6530 - Flange assembly-drive
except Trophy
|
|
2D600100 |
|
| 11 |
FAM8419 - Stud
|
|
|
3,05 |
| 12 |
FAM8970 - Disc-vented brake
except Trophy
superceeded by
NAM7806
NAM 8970 GBD90607
dia. 240 x 22 mm
(min 20,5mm)
height 43,2mm
EBC D228
EBC GD228 USR228
QH BDC3471
BOSCH
0 265 006 271
TEXTAR
98200 0445 0 1
|
|
|
28,79 |
| 12 |
SDB000230 - Disc-vented brake
Trophy
dia. 304 x 24 mm
(min 22mm)
EBC D1176
D1176 GD1176 USR1176
|
|
|
140,87 |
| 13 |
SF106161 - Screw
brake disc to drive flange
|
|
|
0,48 |
