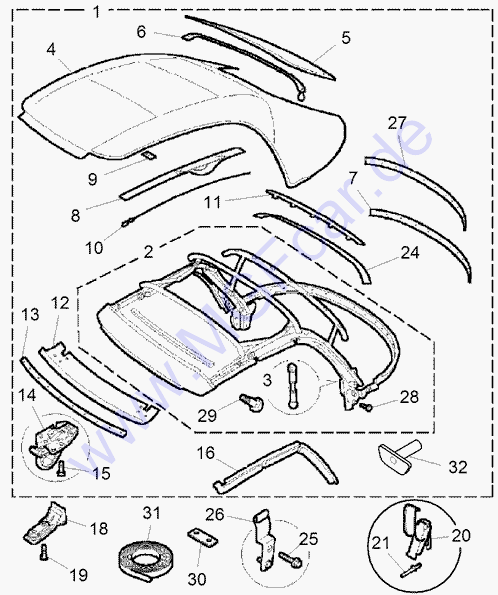

P/N, description, qty needed. |
from |
to |
GBP
|
| 1 |
DSB100140PDA - Hood assembly-manual
convertible - Black
superceeded by
DSB100220PDA
|
|
WD024604 |
2186.78 |
| 1 |
DSB100220PDA - Hood assembly-manual
convertible - Black
|
WD024605 |
|
2245.27 |
| 1 |
DSB100220RIN - Hood assembly-manual
convertible - Beige/Black
Limited Edition in Brooklands Green
|
|
|
1389.36 |
| 1 |
DSB100220JZP - Hood assembly-manual
convertible - Blue
|
|
1D600100 |
2421.91 |
| 1 |
DSB100220CVG - Hood assembly-manual
convertible - Burgundy
superceeded by
DSD100430CVG
|
|
XD511058 |
1386.20 |
| 1 |
DSB100220CCV - Hood assembly-manual
convertible - Burgundy
80th Anniversary
|
|
|
2454.54 |
| 1 |
DSB100220LFM - Hood assembly-manual
convertible - Dark Grey, Spark S.E
|
|
|
2454.54 |
| 1 |
DSB100220HZP - Hood assembly-manual
convertible - Green
|
2D600101 |
|
2421.03 |
| 1 |
DSB100220LZD - Hood assembly-manual
convertible - Grey
|
2D600101 |
|
2421.03 |
| 1 |
DSB100220SBT - Hood assembly-manual
convertible - tan
80th Anniversary
|
|
|
2454.54 |
| 2 |
DSE100260PMA - Frame assembly-manual
convertible hood - Black
|
|
|
741,33 |
| 2 |
DSE100140PMA - Frame assembly-manual
convertible hood - Black
|
|
|
??? |
| 3 |
DJY100010 - Link-convertible hood rod
assembly
|
|
|
31,53 |
| 4 |
DSD100430RIO - Cover assembly-convertible
hood - Beige
Limited Edition in Brooklands Green
|
|
|
563,25 |
| 4 |
DJX100190PMA - Cover assembly-convertible
hood - Black
|
|
WD024604 |
563,25 |
| 4 |
DSD100430PMA - Cover assembly-convertible
hood - Black
|
WD024605 |
|
563,25 |
| 4 |
DSD100430JZP - Cover assembly-convertible
hood - Blue
|
2D600101 |
|
563,25 |
| 4 |
DSD100430CVG - Cover assembly-convertible
hood - Burgundy
75th Anniversary
|
|
XD511058 |
563,25 |
| 4 |
DSD100430LFM - Cover assembly-convertible
hood - Dark Grey, Spark S.E
|
|
|
563,25 |
| 4 |
DSD100430HZP - Cover assembly-convertible
hood - Green
|
2D600101 |
|
563,25 |
| 4 |
DSD100430LZD - Cover assembly-convertible
hood - Grey
|
2D600101 |
|
563,25 |
| 5 |
DSL100100RIO - Backlight assembly-convertible
hood plastic - Beige - Limited Edition in Brooklands Green
|
|
|
373 |
| 5 |
DSL100100PMA - Backlight assembly-convertible
hood plastic - Black
|
|
|
373 |
| 5 |
DSL100100PMA - Backlight assembly-convertible
hood plastic - Black
|
1D600100 |
|
373 |
| 5 |
DSL100100JZP - Backlight assembly-convertible
hood plastic - Blue
|
2D600101 |
|
252 |
| 5 |
DSL100100CVG - Backlight assembly-convertible
hood plastic - Burgundy -75th Anniversary
|
|
XD511058 |
233 |
| 5 |
DSL100100LFM - Backlight assembly-convertible
hood plastic - Dark Grey, Spark S.E
|
|
|
352 |
| 5 |
DSL100100HZP - Backlight assembly-convertible
hood plastic - Green
|
2D600101 |
|
352 |
| 5 |
DSL100100LZD - Backlight assembly-convertible
hood plastic - Grey
|
2D600101 |
|
352 |
| 5 |
DSL000030xxx - Backlight assembly-convertible
hood heated glass window- Grey
|
5D639631 |
|
430,35 |
| 6 |
DXR100040 - Zip-convertible hood backlight
|
|
|
55 |
| 7 |
DJO100010 - Extrusion-convertible hood
rear bow
|
|
|
69,73 |
| 8 |
DUQ100030 - Tape-convertible hood elastic
- LH
|
|
|
31,58 |
| 8 |
DUQ100020 - Tape-convertible hood elastic
- RH
|
|
|
31,58 |
| 9 |
DUN100230 - Plate assembly-convertible
hood retaining
|
|
|
4,33 |
| 10 |
DJQ100080 - Cable-convertible hood
tension
|
|
|
13,47 |
| 11 |
DXI100040 - Insert-convertible hood
rear bow canopy
|
|
|
16,03 |
| 12 |
DJX100160PMA - Fabric-convertible hood
cover - Black
|
|
|
17,05 |
| 13 |
DXI100050 - Insert-convertible hood
front header
|
|
|
14,52 |
| 14 |
DXW100170PMA - Catch assembly-front
header - Black, LH
|
|
WD024604 |
NLA |
| 14 |
DXW100290PMA - Catch assembly-front
header - Black, LH
|
WD024605 |
|
42,73 |
| 14 |
DXW100160PMA - Catch assembly-front
header - Black, RH
|
|
WD024604 |
NLA |
| 14 |
DXW100280PMA - Catch assembly-front
header - Black, RH
|
WD024605 |
|
42,73 |
| 15 |
SB108204 - Screw-hexagon socket - M8
|
|
|
0,46 |
| 16 |
DSF100970PMA - Seal assembly-convertible
hood cantrail - Black, LH
superceeded by
DSF101220PMA
DSF101350PMA
|
|
WD024604 |
|
| 16 |
DSF101220PMA - Seal assembly-convertible
hood cantrail - Black, LH
superceeded by
DSF101350PMA
|
|
WD024604 |
|
| 16 |
DSF000030PMA - Seal assembly-convertible
hood cantrail - Black, LH
superceeded by
DSF101350PMA
|
WD024605 |
|
45,17 |
| 16 |
DSF101350PMA - Seal assembly-convertible
hood cantrail - Black, LH
|
WD024605 |
|
46,98 |
| 16 |
DSF100960PMA - Seal assembly-convertible
hood cantrail - Black, RH
superceeded by
DSF101210PMA
DSF101340PMA
|
|
WD024604 |
NLA |
| 16 |
DSF101210PMA - Seal assembly-convertible
hood cantrail - Black, RH
superceeded by
DSF101340PMA
|
|
WD024604 |
31,52 |
| 16 |
DSF000020PMA - Seal assembly-convertible
hood cantrail - RH
superceeded by
DSF101340PMA
|
WD024605 |
|
45,17 |
| 16 |
DSF101340PMA - Seal assembly-convertible
hood cantrail - Black, RH
|
WD024605 |
|
46,98 |
| 17 |
DSF101030PMA - Seal-convertible hood
B post a - Black, LH
superceeded by
DSF101200PMA
DSF101350PMA
|
|
WD024604 |
28,03 |
| 17 |
DSF101020PMA - Seal-convertible hood
B post a - Black, RH
superceeded by
DSF101190PMA
DSF101340PMA
|
|
WD024604 |
28,03 |
| 18 |
DSS100190PMD - Striker-convertible
hood front header - Black, LH
superceeded by
DSS100230PMD
|
|
AD020304 |
|
| 18 |
DSS100230PMD - Striker-convertible
hood front header - Black, LH
|
AD020305 |
|
7,48 |
| 18 |
DSS100180PMD - Striker-convertible
hood front header - Black, RH
superceeded by
DSS100220PMD
|
|
AD020304 |
|
| 18 |
DSS100220PMD - Striker-convertible
hood front header - Black, RH
|
AD020305 |
|
7,48 |
| 19 |
DYP10045 - Screw-torx-pan - striker
to header
|
|
|
0,34 |
| 20 |
DXW100010PMA - Catch assembly-rear
hoodwell - Black
superceeded by
DXW100140PMA and
RA610185
|
|
AD006145 |
|
| 20 |
DXW100140PMA - Catch assembly-rear
hoodwell - Black
|
AD006146 |
|
3,45 |
| 21 |
RA610377 - Rivet-pop-steel
superceeded by
RA610185
|
|
AD006145 |
|
| 21 |
RA610185 - Rivet-pop-steel
|
AD006146 |
|
0,31 |
| 24 |
DXS100070 - Kit-hood finishing strip
- interior
|
|
|
75,89 |
| 25 |
KYP10004 - Screw
|
|
|
0,71 |
| 26 |
DUN100210 - Plate assembly-hardtop
B post mounting - LH
superceeded by
DUN100350
|
|
AD016120 |
|
| 26 |
DUN100350 - Plate assembly-hardtop
B post mounting - LH
|
AD016121 |
|
2,44 |
| 26 |
DUN100200 - Plate assembly-hardtop
B post mounting - RH
superceeded by
DUN100340
|
|
AD016120 |
NLA |
| 26 |
DUN100340 - Plate assembly-hardtop
B post mounting - RH
|
AD016121 |
|
2,44 |
| 27 |
DXI100020 - Insert-convertible hood
centre extrusion
|
|
|
13,36 |
| 28 |
DYP101350 - Screw-torx-button - M6
x 10
|
|
|
0,30 |
| 29 |
DJB100260 - Pin-convertible hood frame
strut/lever pivot
|
|
|
14,35 |
| 30 |
DSZ100110 - Spacer
|
|
|
1,84 |
| 31 |
MUC3610A - Tape
-self adhesive-foam
12m reel
|
|
|
24,70 |
| 32 |
DYR100250 - Stud
|
|
|
0,94 |
| 33 |
DSD100450 - Cover-convertible hood
transport
|
|
2D605986 |
60,52 |
| 33 |
DSD100451 - Cover-convertible hood
transport
|
2D605987 |
4D638456 |
60,52 |
| 33 |
DSD000080 Cover-convertible hood transport
|
4D638457 |
|
60,52 |
| 900 |
DJE000010 Straps - hood folding - upgrade kit
|
|
4D639630 |
5,00 |
