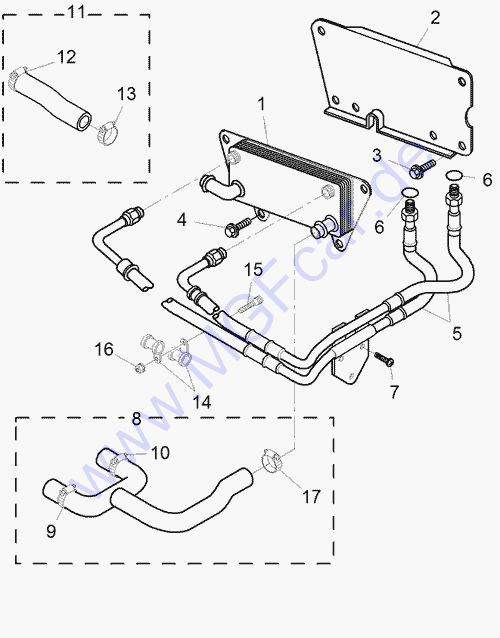

Parts |
 |
P/N, description, qty needed.
|
from |
to |
GBP |
| 1 |
PBC000140 - Oil cooler assembly-engine
- VVC - |
YD511059 |
|
240,05 |
| 2 |
PBU000030 - Bracket-mounting oil cooler |
|
|
5,83 |
| 3 |
FS110161 - Screw-flanged head - M10
x 16
- bracket to block |
|
|
0,40 |
| 4 |
FS108165 - Screw-flanged head - M8
x 16
- cooler to bracket
|
|
|
0,39 |
| 5 |
PBH000100 - Pipe assembly-cooler to
filter oil |
|
|
139,75 |
| 6 |
PYX000100 - O ring |
|
|
0,39 |
| 7 |
PYP000200 - Screw-pan - M12 x 25, pan
head
- pipe to sump
|
|
|
1,09 |
| 8 |
PCH001710 - Hose Assembly
- Expansion Tank to Oil Cooler & Thermostat |
|
|
12,73 |
| 9 |
PYC101390 - Clip-hose
- to thermostat |
|
|
1,01 |
| 10 |
PYC102250 - Clip-hose
- hose to expansion tank |
|
|
|
| 11 |
PEH000410 - Hose Assembly
- rail to engine oil cooler
|
|
|
5,64 |
| 12 |
PYC101400 - Clip-hose
- hose to rail
superceeded by
PYC101400A clip-band
|
|
|
0,63 |
| 13 |
PYC000410 - Clip-hose
- hose to oil cooler
|
|
|
1,14 |
| 14 |
PYC000250 - Clip-pipe
|
|
|
0,07 |
| 15 |
PYR000020 - Stud-shoulder
- pipes to oil cooler
|
|
|
1,60 |
| 16 |
FN106041 - Nut-flange - M6
superceeded by
FN106047
|
|
|
0,22 |
| 17 |
PYC000410 - Clip-hose
- hose to oil cooler
|
|
|
1,14 |
|
|
|
 |
