Parts |
 |
P/N, description, qty needed. |
from VIN |
to VIN |
GBP |
| 1 |

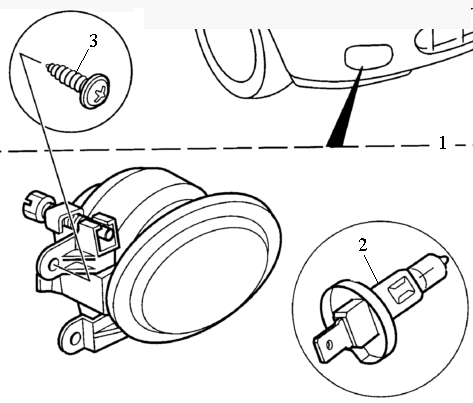

XBJ100270 - Lamp assembly-front lighting
fog - LH
|
|
|
33,28 |
| 1 |
XBJ100260 - Lamp assembly-front lighting
fog - RH
|
|
|
33,28 |
| 2 |
bulb |
|
|
|
| LH |
XJB105510 (LH) REPLACEMENT FOG LAMP
MGF or MGTF |
|
|
38 |
| RH |
XJB105500 (RH) REPLACEMENT FOG LAMP
MGF or MGTF |
|
|
38 |
| 901 |
EYH100300 - Nut - spring-flat
3 of
|
|
|
1,36 |
| 902 |
JZV1183 - Screw -
M5 x 16
|
|
|
0,28 |
| 903 |
DXB100540 - Bezel - front lighting
fog lamp - RH
|
|
|
17,55 |
| 904 |
DXB100550 - Bezel - front lighting
fog lamp - LH
|
|
|
17,55 |
| 905 |
DPE100480 - Armature-front bumper -
fog
|
|
|
23,44 |
| 905 |
DPE100490 - Armature-front bumper -
fog
|
|
|
23,44 |
| 906 |
XFG100230 - Lamp - rear high mounted
stop
|
|
|
35,02 |
| 907 |
CWD100150 - Lock & keys - luggage
box
|
|
|
16,35 |
| 908 |
VVW100010 - Electric control unit-parking
aid
|
|
|
43,08 |
| 909 |
VUL100200 - Harness-link - parking
aid
|
|
|
18,07 |
| 910 |
VUL100210 - Harness main - parking
aid
|
|
|
7,50 |
| 911 |
VVU100010 - Transducer - parking aid
|
|
|
29,71 |
| 912 |
XQM101370 - Speaker - parking aid
|
|
|
11,72 |
| 913 |
VUP100120 - Kit-parking aid ancillary
- small parts kit
|
|
|
? |
| 914 |
EAK100110 - Clip-floor cover special
trim - Black, plastic, locking
|
|
|
1,73 |
| 914 |
EAK100120 - Clip-floor cover special
trim - Grey, plastic, locking
|
|
|
1,73 |
| 914 |
EAK100130 - Clip-floor cover special
trim - plastic, Beige, locking
|
|
|
1,73 |
|
|
|
|
